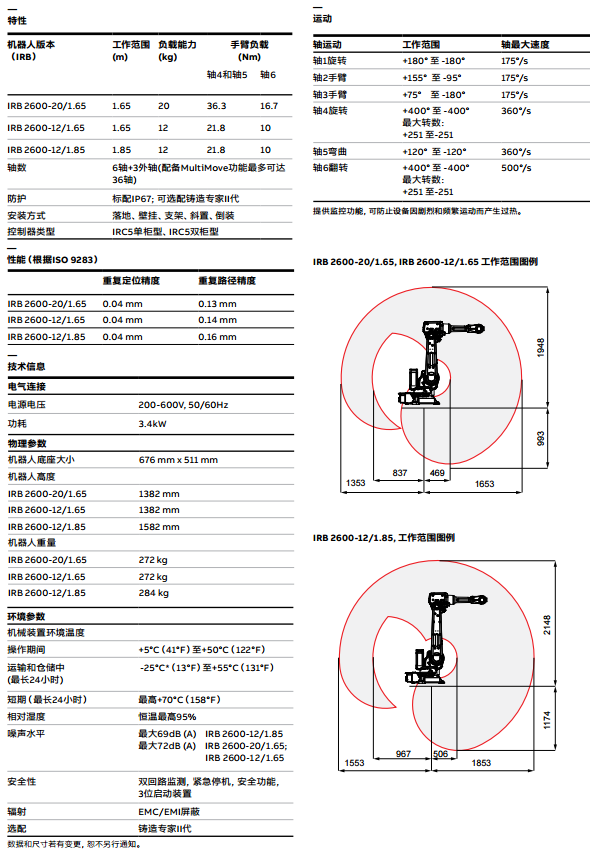

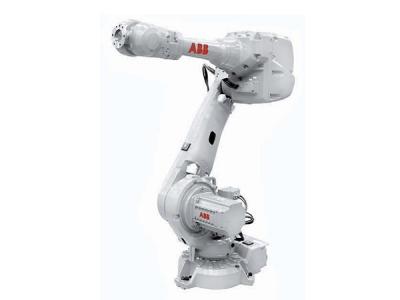

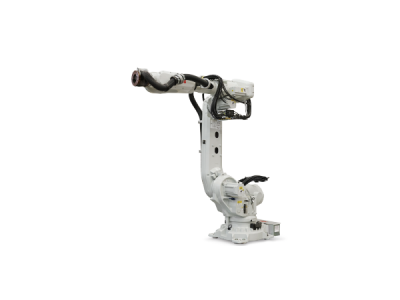

IRB 2600-20/1.65
軸數：6
荷重：20kg
工作范圍：1650mm
重復定位精度：0.04mm
版本：通用版、鑄造版
防護等級標配：IP68
防護等級選配：鑄造專家II代
安裝方式：落地、壁掛、斜置、倒置、支架
本體重量：272kg
主要應用：弧焊、裝配、清潔/噴霧、切割、擠膠、上下料、物料搬運、包裝
IRB 2600-20/1.65
Number of axes: 6
Load: 20kg
Working range: 1650mm
Repeat positioning accuracy: 0.04mm
Version: Universal version, casting version
Protection grade standard: IP68
Protection level matching: Foundry Expert II
Installation method: floor, wall, oblique, inverted, bracket
Body weight: 272kg

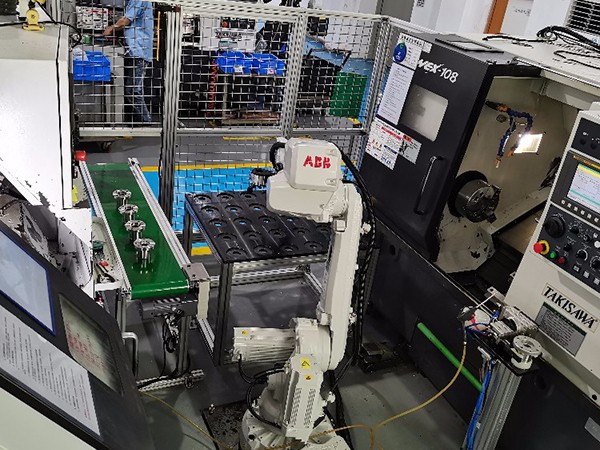

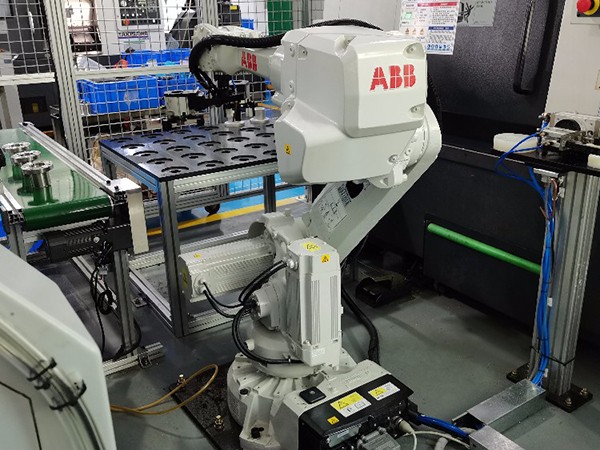

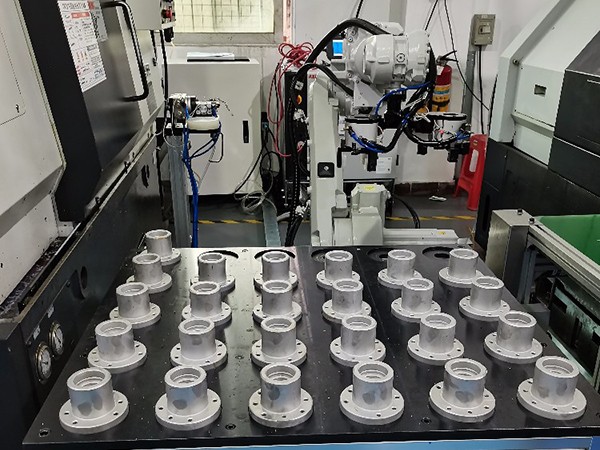

Main applications: arc welding, assembly, cleaning/spraying, cutting, extrusion, loading and unloading, material handling, packaging

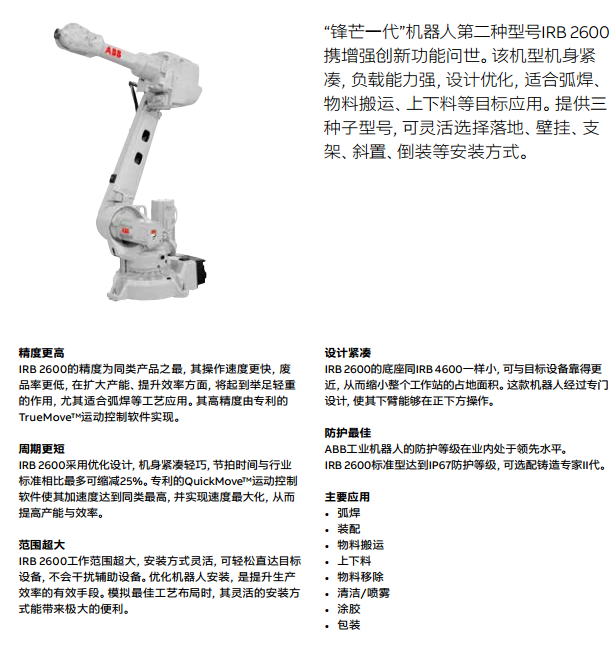

鋒芒一代”機器人第二種型號IRB 2600攜增強創新功能問世。該機型機身緊湊，負載能力強，設計優化，適合弧焊、物料搬運、上下料等目標應用。提供三種子型號，可靈活選擇落地、壁掛、支架、斜置、倒置等安裝方式。
The second model of the "Edge Generation" robot, IRB 2600, comes out with enhanced innovative functions. This model has a compact body, strong load capacity, and optimized design, suitable for target applications such as arc welding, material handling, loading and unloading. Three sub-models are available, which are flexible Choose floor, wall, bracket, oblique, inverted installation methods.
