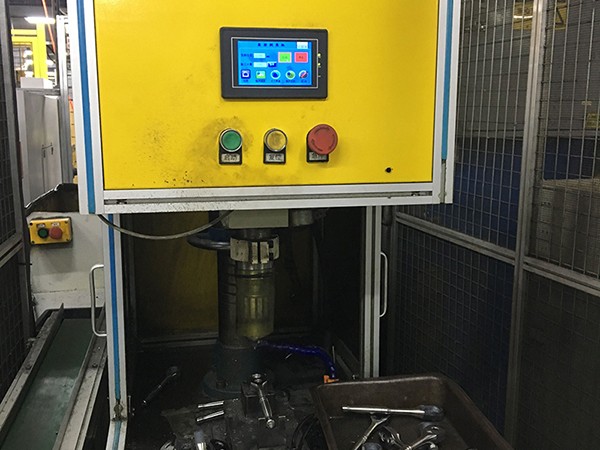

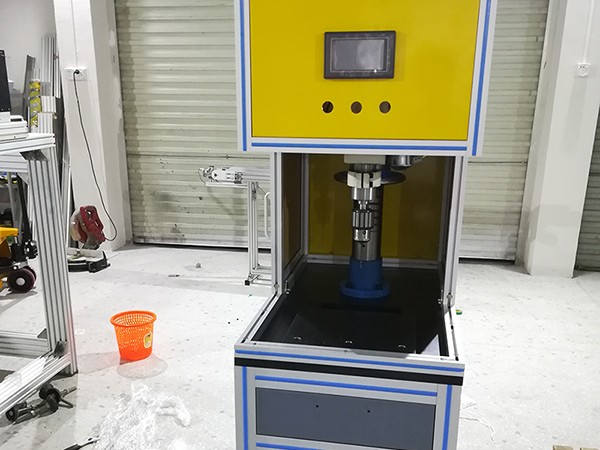

名稱：數控鉆床
材質：鋼材等
主電機功率：0.37/0.55（kw）
鉆孔直徑范圍：12.7（mm）
主軸轉速范圍：480-4100（rpm）
尺寸：600mm*1000mm*1500mm
重量：150kg
Name: CNC Drilling Machine
Material: Steel, etc.
Main motor power: 0.37/0.55 (kw)
Drilling diameter range: 12.7 (mm)
Spindle speed range: 480-4100 (rpm)
Size: 600mm*1000mm*1500mm
Weight: 150kg
特點：
效率高、穩定性好、智能控制、操作簡單、重復精度達到0.02mm，高精度滾珠絲杠、無間隙、運動精度高，維護方便、使用成本低、一人多機、減少勞動力
配合機加工等自動化設備運行更好（和工業機器人配合效率更高，可節省1-2個人工）
模式設置：單次及連續動作、時間等待設置、快速退進、分段進給、自動退屑等各種模式
用途：本機床用于在黑色金屬及其它材料上鉆擴鉸30mm以下的孔，并具有锪平鉆孔的底面的功能。適用于機械制造、五金工具等行業。
Features:
High efficiency, good stability, intelligent control, simple operation, repeatability up to 0.02mm, high-precision ball screw, no gap, high motion precision, convenient maintenance, low cost of use, one person with multiple machines, and reduced labor

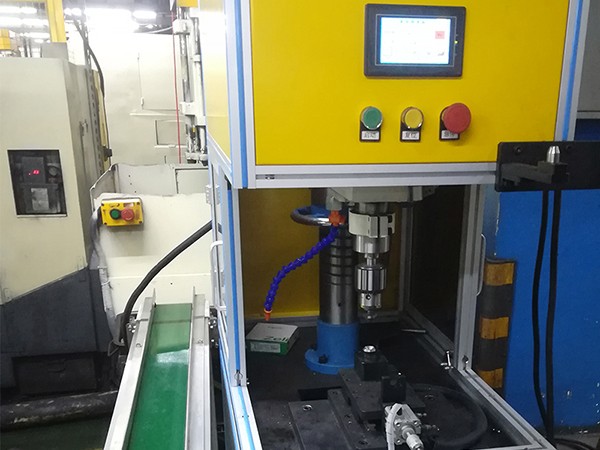

Work better with automation equipment such as machining (more efficient with industrial robots, saving 1-2 manpower)
Mode setting: single and continuous action, time waiting setting, rapid retreat, segmented feed, automatic chip retreat and other modes
Purpose: This machine tool is used to drill holes of less than 30mm reaming on ferrous metals and other materials, and has the function of countersinking the bottom surface of the drilled hole. Suitable for machinery manufacturing, hardware tools and other industries.
